GLENMOOR™ CHEVRON
Charming and elegant, the exceptional style of Glenmoor™ Chevron garage doors makes an exquisite addition to any homeowner’s exterior. With its unique cladding design options, it will give your home that extra charm it was longing for.

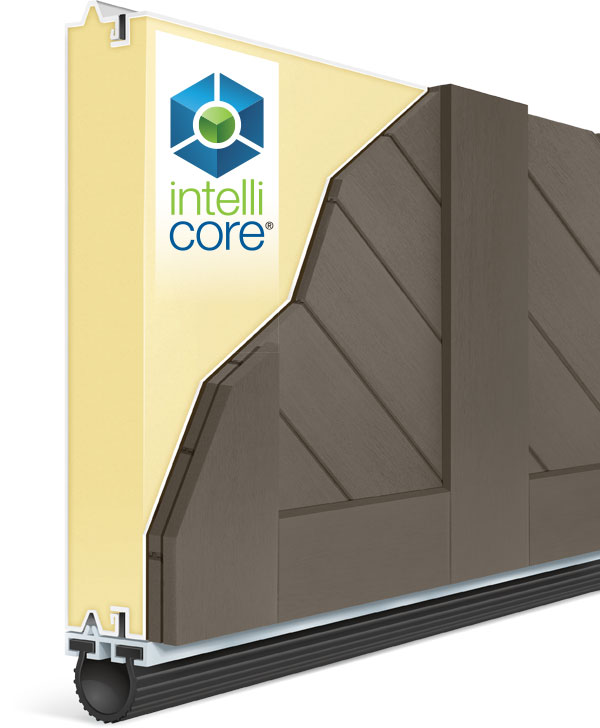

■ FIVE-LAYER CONSTRUCTION
Steel, Insulation, Steel, Cladding, Overlay
2″ Intellicore® Polyurethane Insulation
20.4 R-Value
Five-layer construction with Intellicore® polyurethane insulated, composite faux wood doors.
Swing-out appearance – modern operation.
Premium grade hardware, rollers and track assure smooth, quiet, long-lasting operation.
■ DOOR DESIGNS

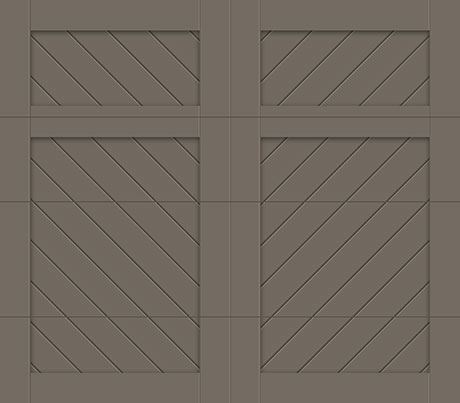

Design 11V

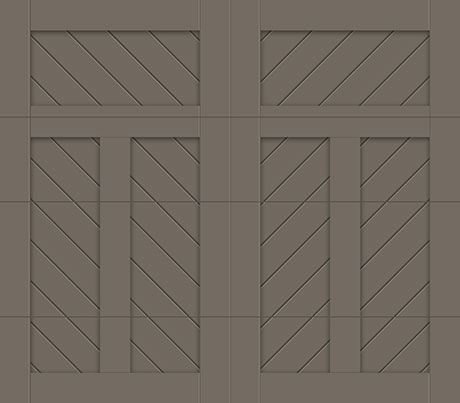

Design 12V

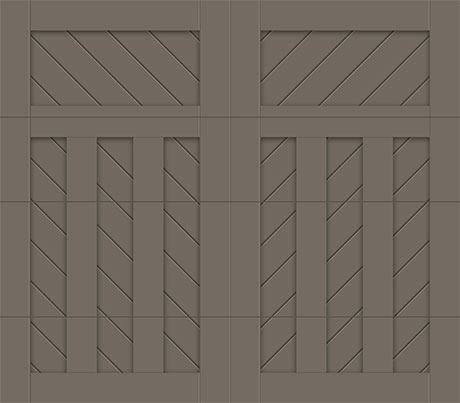

Design 13V

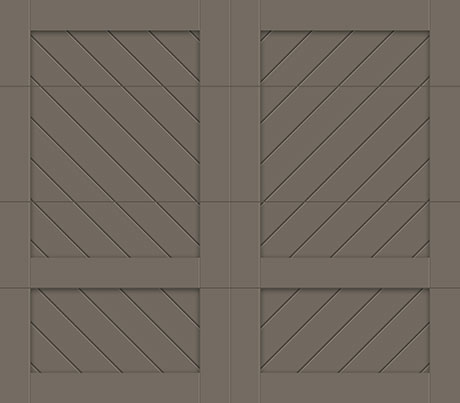

Design 31V

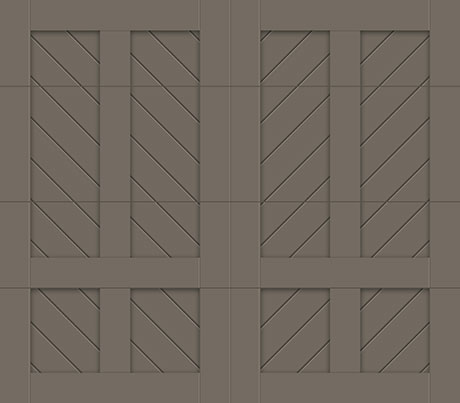

Design 32V

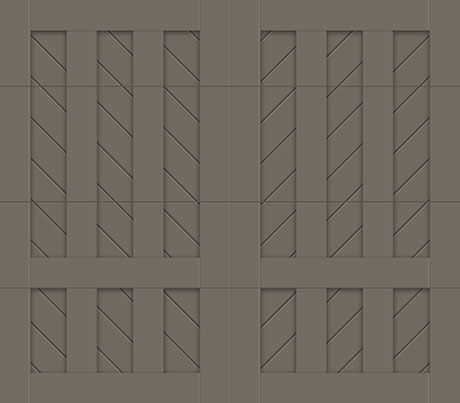

Design 33V

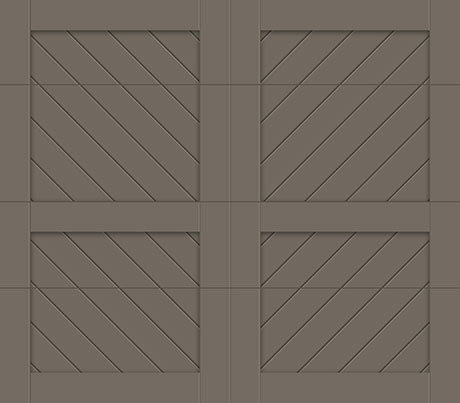

Design 36V

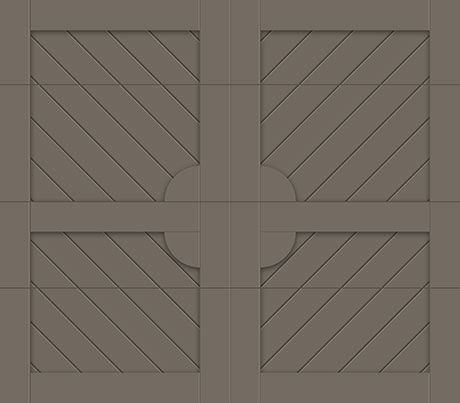

Design 37V
Single door widths shown. Doors shown in Bronze Finish with Mahogany composite cladding and Mahogany composite overlay.
■ CLADDING DESIGN OPTIONS
Option V
Option A
Option D
Option U
■ MATERIAL DESIGN OPTIONS
Composite cladding options include Clear Cypress, Mahogany and Pecky Cypress. Composite overlay options include Clear Cypress and Mahogany.
CLADDING
OVERLAY
Clear Cypress
Mahogany
Pecky Cypress
OVERLAY
Clear Cypress
Mahogany
Cladding and overlay material options may be mixed and matched.
■ COLOR OPTIONS
Factory finished in Walnut, Dark, Medium, Slate, Bronze, Charcoal or Black Finish; doors can also be ordered in White Finish (Mahogany only) or primed for homeowners wishing to custom paint or stain their doors.
Walnut Finish
Dark Finish
Medium Finish
Slate Finish
Bronze Finish*
Charcoal Finish*
Black Finish*
White Finish*
Primed (No Finish)
*Bronze, Charcoal, Black and White Finish available only on Mahogany cladding and overlays.
Doors can be ordered primed for those homeowners wishing to custom paint or stain their doors. Door stain color will vary slightly within a door due to finishing process.
Please Note: Actual colors may vary from sample photos. For more information, view our color disclaimer.
■ WINDOWS/TOP SECTION OPTIONS
Attractive beveled-edge, clip-in grilles are removable for easy window cleaning.

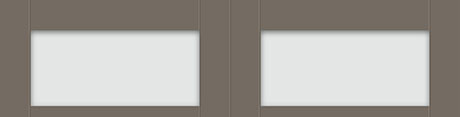

REC11

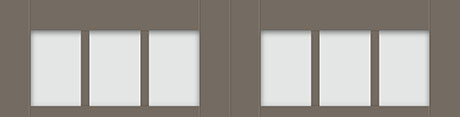

REC13

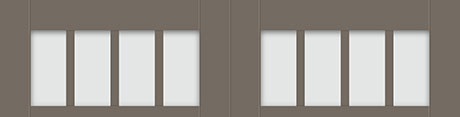

REC14

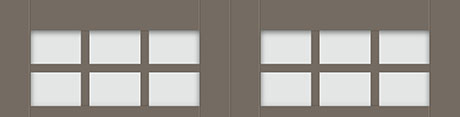

SQ23

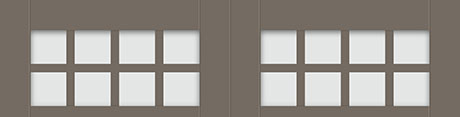

SQ24

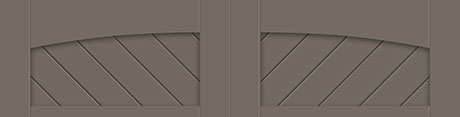

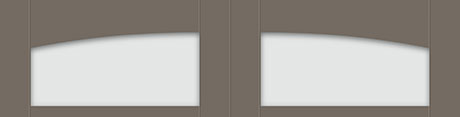

ARCH1

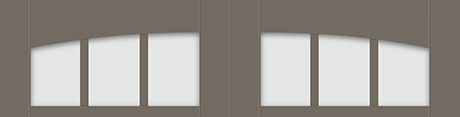

ARCH13

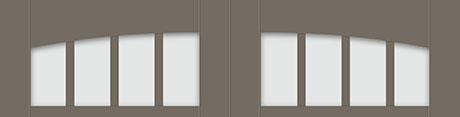

ARCH14

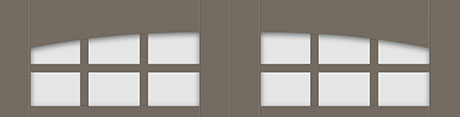

ARCH3

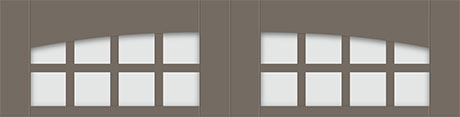

ARCH4

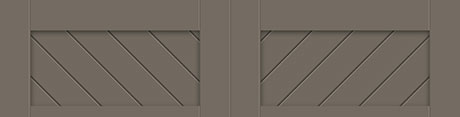

TOP11

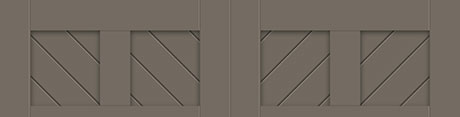

TOP12

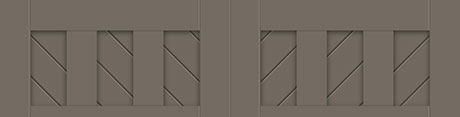

TOP13
ARCH1
Designs 31, 32, 33, 36, 37 are not available with windows.
Double door designs available.
■ SPECIALTY GLASS OPTIONS
Glass is available in different designs depending on door model. Options include acrylic, clear, frosted, seeded, obscure and rain, as well as insulated versions for a more energy efficient door.
Clear
Frosted
Seeded
Obscure
Rain
Additional charges for optional glass apply.
■ DECORATIVE HARDWARE
Attractive black powder coated handles and step plates are provided standard on garage doors to further enhance the design of the door. Optional decorative hardware, including handles, operable L-keylocks and strap hinges, is also available.
SPADE HARDWARE COLLECTION
SPEAR HARDWARE COLLECTION
■ Spade Lift Handles (Included)
■ Spade Step Plate (Included)
■ Spade Strap Hinge* (Optional)
■ = Steel Construction ■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
SPEAR HARDWARE COLLECTION
■ Spear Lift Handles (Optional)
■ Spear Step Plate (Optional)
■ Spear Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
COLONIAL HARDWARE COLLECTION
■ Colonial Lift Handles (Optional)
■ Colonial Step Plate (Optional)
■ Colonial Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
MISCELLANEOUS HARDWARE
■ Twisted “L” Handles (Optional)
■ Escutcheon Plate(s) (Optional)
■ Decorative Handles with Keyhole (Optional)
■ Ring Door Knocker (Optional)
■ = Cast Iron Construction
■ = Steel Construction ■ = Aluminum Construction ■ = Cast Iron Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
