Lodgewood^® Collection

Lodgewood is a handcrafted wood carriage house style garage door combining authentic wood designs with the functionality of a steel garage door.

Swing-out appearance with modern operation
Popular carriage house style designs with several window / top section options
Semi-Custom or Fully Custom options to choose from

2-Layer Construction

lodgewood_optionalcentergroove

OPTIONAL CENTER GROOVE

Detailed center groove accentuates the look of a Carriage House door. Center grooves can be applied only to 8″ center stiles.

6′ to 9′ wide door = 1 groove per door
9’2″ to 14′ wide door = 2 grooves per door
14’2″ to 18′ wide door = maximum of 3 grooves per door

CONSTRUCTION

Authentic, handcrafted wood construction available in Hemlock, Cedar or Redwood
1/4″ thick imported Luan interior backer glued to stiles and rails
EZ-SET^® torsion springs available on many sizes
Quiet door with long-lasting nylon rollers

STYLE & FINISH

All stain grade wood rails, stiles and panel are made from Redwood, Cedar or Hemlock; Hemlock (paint grade and grooved) doors have hemlock stiles and rails with exterior grade MDO plywood panels
True divided windows are standard with 1/8″ DSB glass; Specialty glass options also available
Decorative spade lift handles standard, additional decorative hardware available
All doors can be factory primed or finished painted white; Factory stain available for stain grade wood species (additional cost applies)

SIZES

Standard widths are 8′, 9′, 10′, 15′, 15’6″, 16′ and 18′ (non standard widths are available from 6’0″ to 18’0″ in 2″ increments)
Available in 6’6″, 7’0″, 7’6″ and 8’0″ heights only

MAINTENANCE & CARE

Proper care and maintenance are imperative to the appearance, longevity and performance of a Lodgewood Premium Wood door
Prior to installation, it is required that the door (outside, inside and all edges) be primed and painted with a high quality exterior paint or stained with a penetrating stain that is mildew and UV resistant and water repellent; Failure to properly finish door will void warranty.

Models

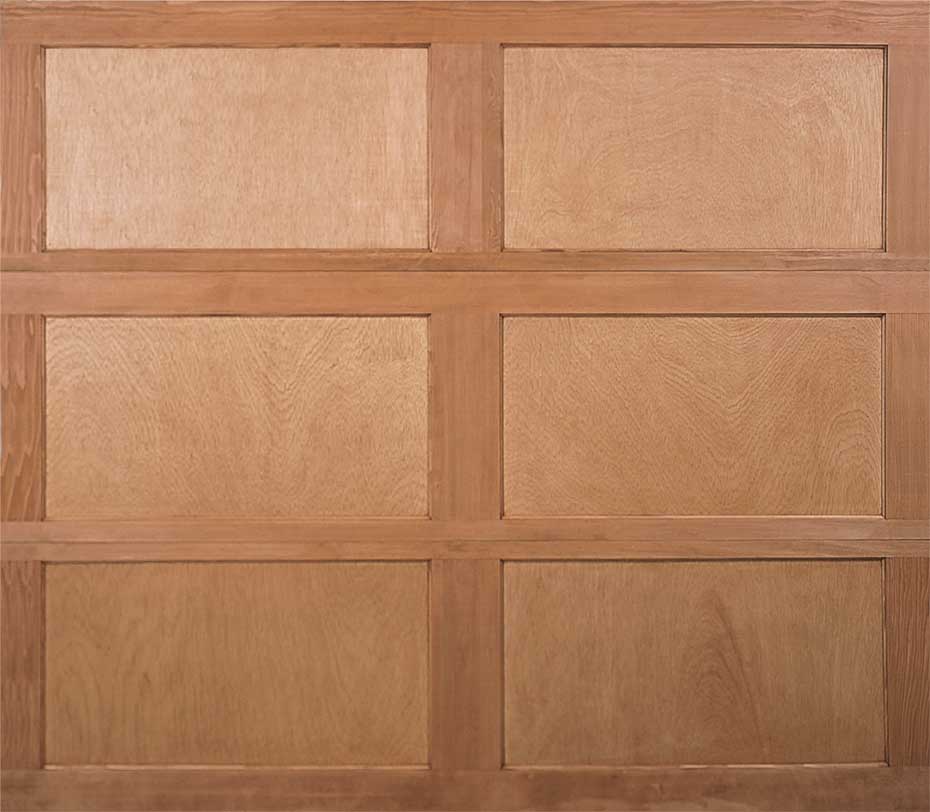

DESIGN 1

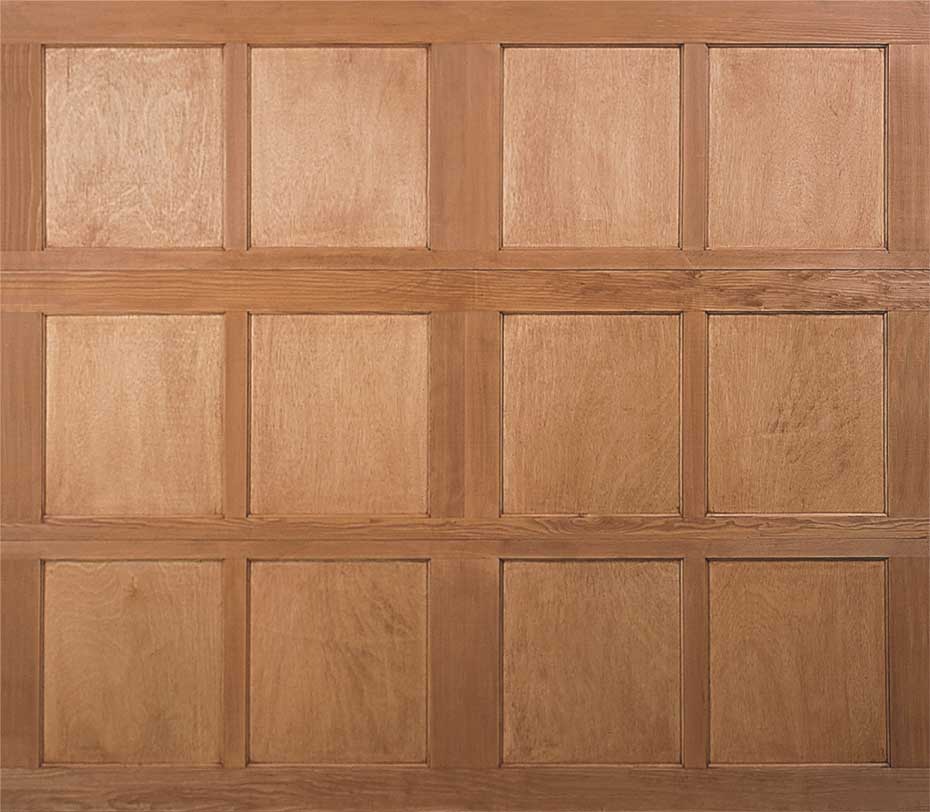

DESIGN 2

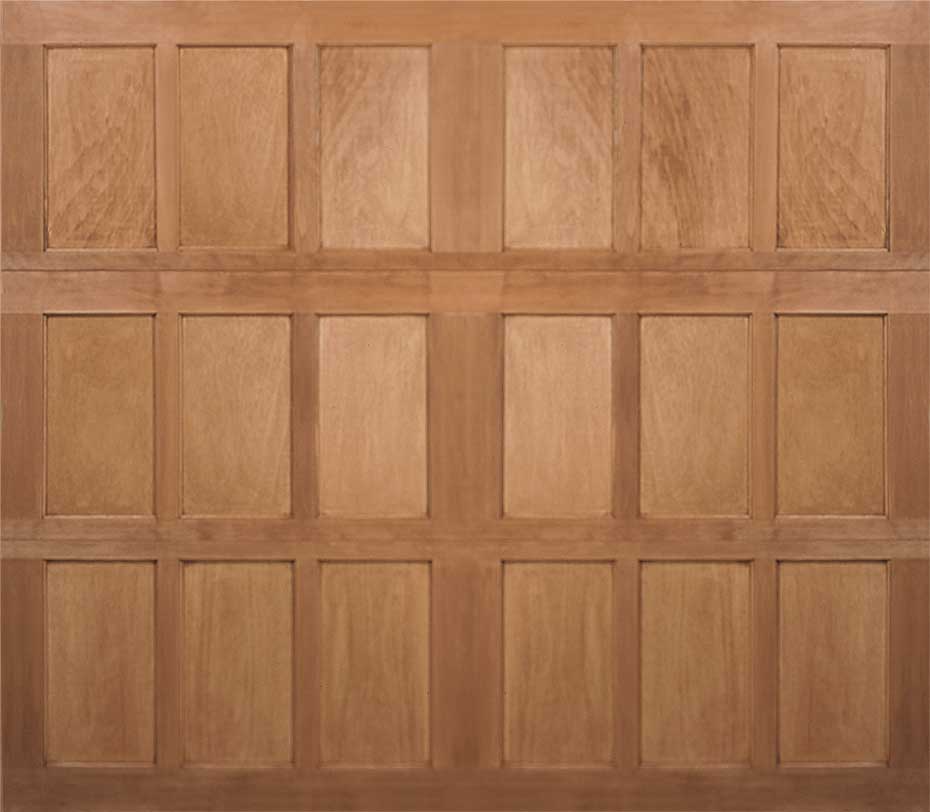

DESIGN 3

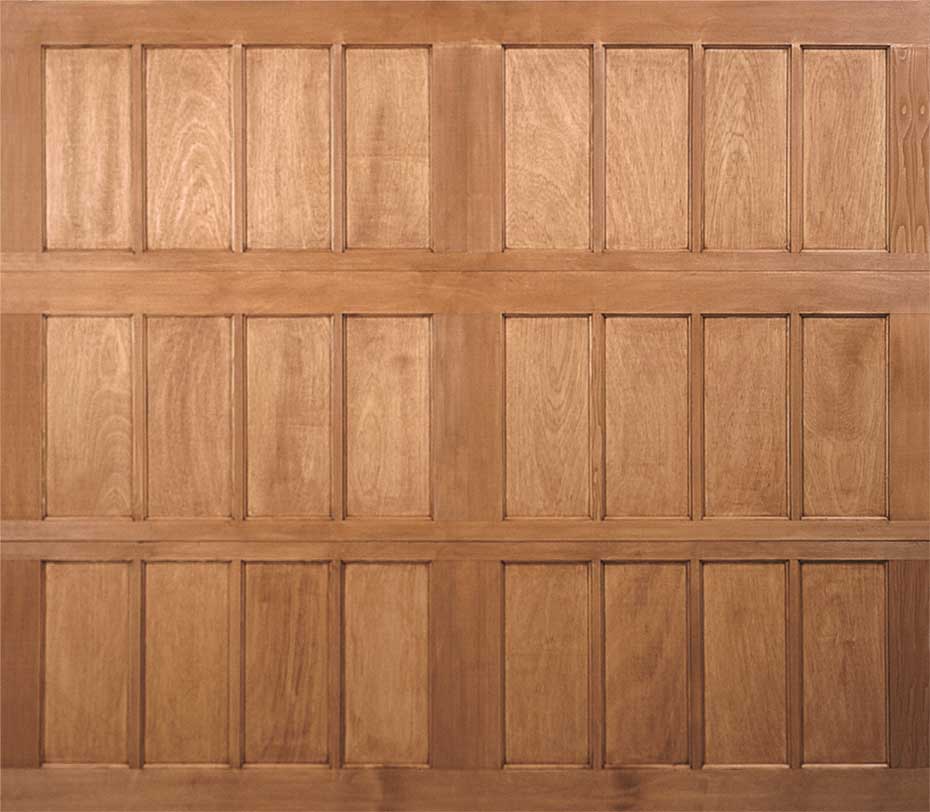

DESIGN 4

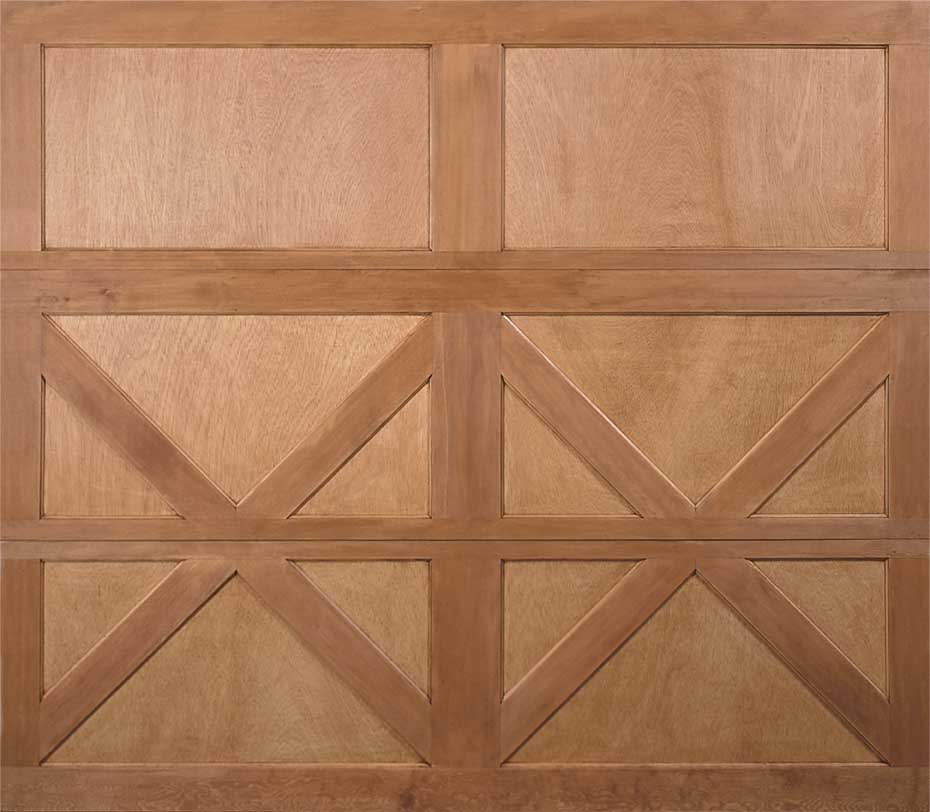

DESIGN 5

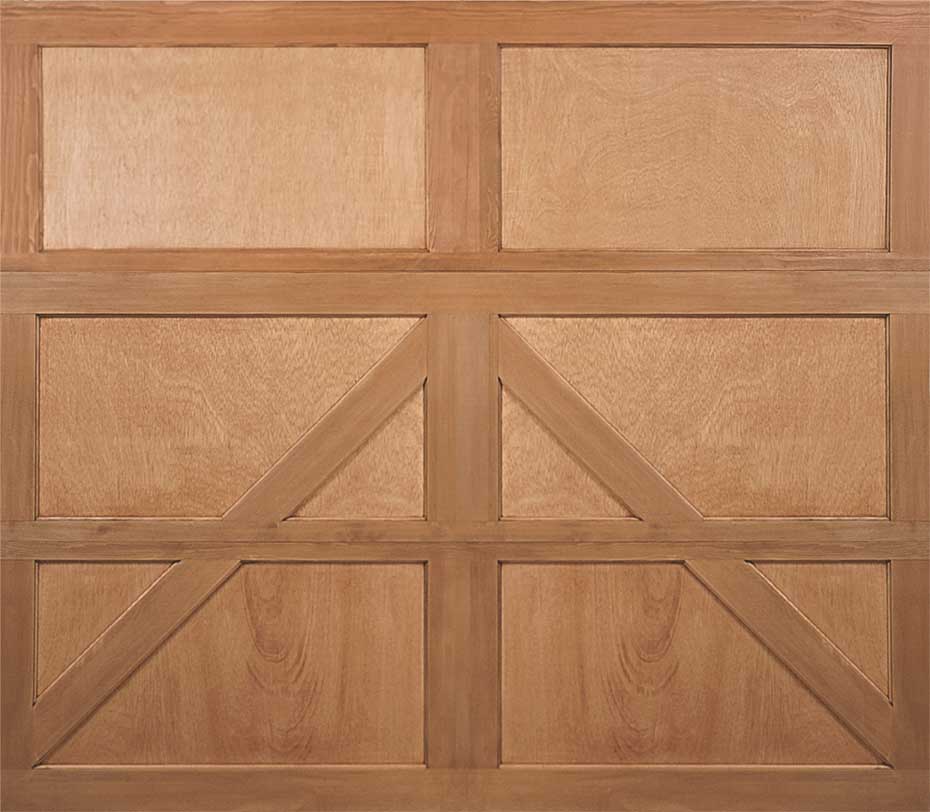

DESIGN 6

Windows/Top Sections

Solid

ARCH1 (Solid)

ARCH13

SQ23

SQ24

ARCH14

REC13

REC14

ARCH3

ARCH4

Solid (Double Door)

ARCH1 (Solid, Double Door)

ARCH2 (Solid, Double Door)

ARCH3 (Double Door)

ARCH4 (Double Door)

ARCH6 (Double Door)

ARCH8 (Double Door)

SQ23 (Double Door)

SQ24 (Double Door)

REC13 (Double Door)

REC14 (Double Door)

Specialty Glass Options

Seeded

Frosted Gluechip

Obscure

Delta Frost

Frosted

Narrow Reed

Rain

Optional specialty glass, including Seeded, Rain, Obscure and Frosted Gluechip, is available on all Lodgewood^® Collection models to provide that one-of-a-kind wood carriage house look. Most specialty glass options are also available in insulated and tempered offerings.

Material Options

STAIN GRADE

STILE/RAILS Hemlock	Cedar
PANELS Hemlock	Cedar

STAIN GRADE

PAINT GRADE

STILE/RAILS Redwood	Hemlock
PANELS Redwood	MDO Smooth

PAINT GRADE
CH_hemlockgrooved

STILE/RAILS
Hemlock

PANELS
MDO Grooved

Paint Grade and Grooved doors cannot be stained.

Optional Factory Staining*

Natural		Natural Oak

Cedar		Teak

Mahogany		Butternut

Dark Oak

Important Notes: Door must be painted or stained according to installation instructions prior to installation. Factory Stain doors are not available on doors that contain paint grade materials. Not all wood types stain equally and all stain colors will vary in appearance on all wood types.
*Additional cost.

Order Color Samples

PLEASE NOTE
Actual colors may vary from sample photos.
