Settlers® Collection

  • Settlers® Collection Design 22 with SQ23 Windows; Base Door Shown in Sandtone with White Overlays

  • Settlers® Collection Design 12 with SQ23 Windows; Shown in White

  • Settlers® Collection Design 13 with ARCH3 Windows; Shown in Sandtone

  • Settlers® Collection Design 21 with SQ23 Windows; Shown in White

Settlers® Collection

Settlers garage doors offer carriage house design with the look of wood and the insulation and durability benefits of steel. This 4-layer construction offers insulation, including our high R-value Intellicore® polyurethane or polystyrene, sandwiched between steel and topped with a woodgrain texture composite overlay.

  • Swing-out appearance with modern operation
  • Popular carriage house style designs with several window / top section options
  • Insulation Options:
  •      SXU – 2" Intellicore® Polyurethane (R-value 18.4)
  •      SX – 2" Polystyrene (R-value 9.0)
  •      SF – 1-3/8" Polystyrene (R-value 6.5)

4-Layer Construction | Steel + Insulation + Steel + Composite Overlay

2" or 1-3/8" Insulation


settlers_grooves
Settlers carriage house style garage doors
are designed with decorative center grooves
and stylish beveled coped edges.

CONSTRUCTION
  • 4-layer construction with insulation bonded between two layer of steel and composite overlays
  • EZ-SET® Torsion springs standard on most sizes
  • Includes automatic opener reinforcement
STYLE & FINISH
  • Base door has a natural woodgrain texture, painted with a baked-on primer and polyester top coat
  • Detailed beveled, coped edge overlay
  • Windows with complete overlay and true arch designs are available in double strength, frosted, seeded, obscure, rain and insulated glass. Grilles are removable for ease of cleaning.
  • Decorative spade lift handles standard, additional decorative hardware is available
SIZES
  • Available in 6'2", 6'4", 7'0", 7'2", 7'6", 7'8", 8'0", 8'2", 8'6", 9'0", 9'2", 10'0", 12'0", 12'2", 13'0", 13'6", 13'8", 14'0", 14'2", 15'0", 15'2", 15'6", 15'8", 16'0", 16'2", 17'0", 18'0", 18'2"*, 19'0"* and 20'0"* wide
  • Series 2 available from 6'3" to 10' high in 3" increments
  • Series 1, 3 and 4 available from 6'3" to 12' high in 3" increments

* Available on SXU and SX models only.

settlers_18.4rvalue settlers_9.0rvalue settlers_6.5rvalue

Models

SERIES 1

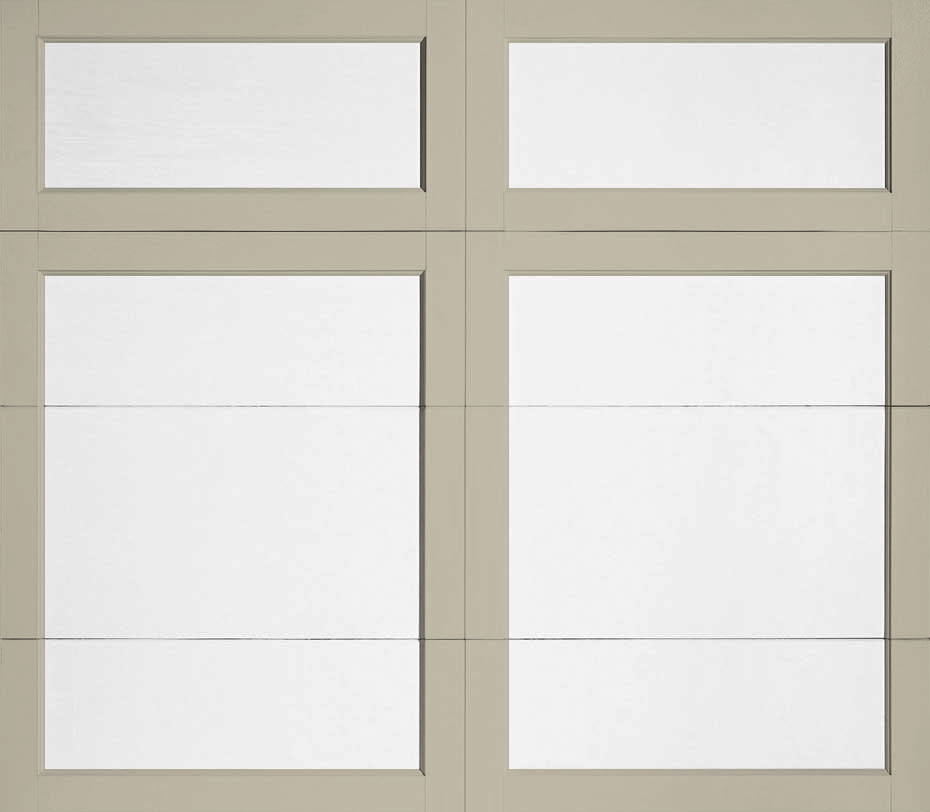

DESIGN 11

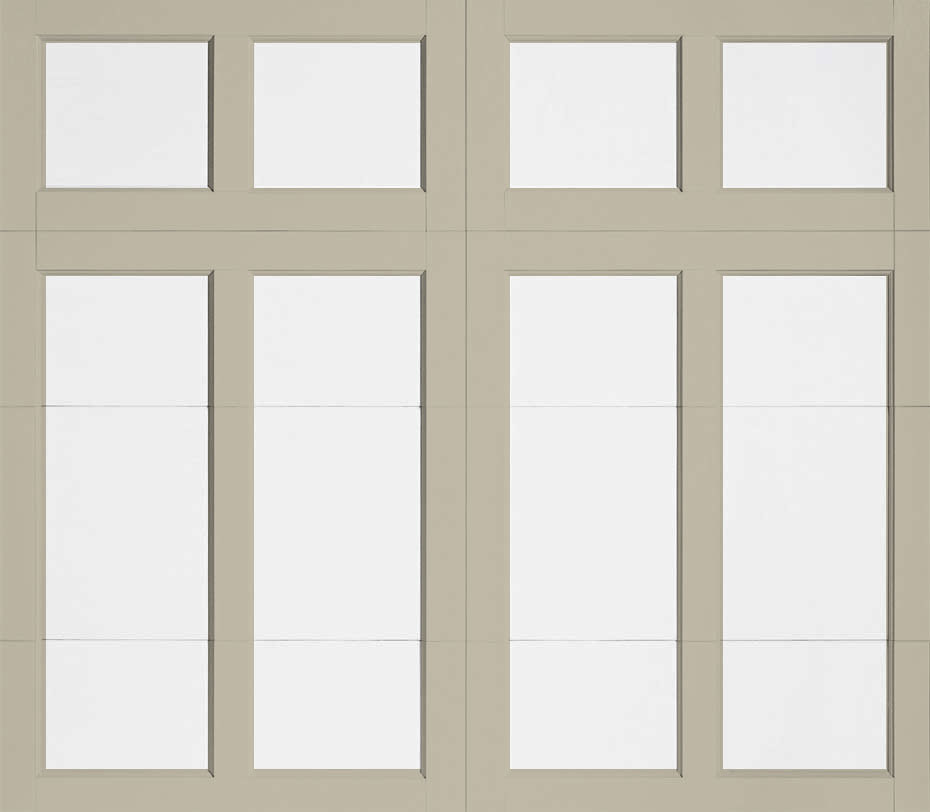

DESIGN 12

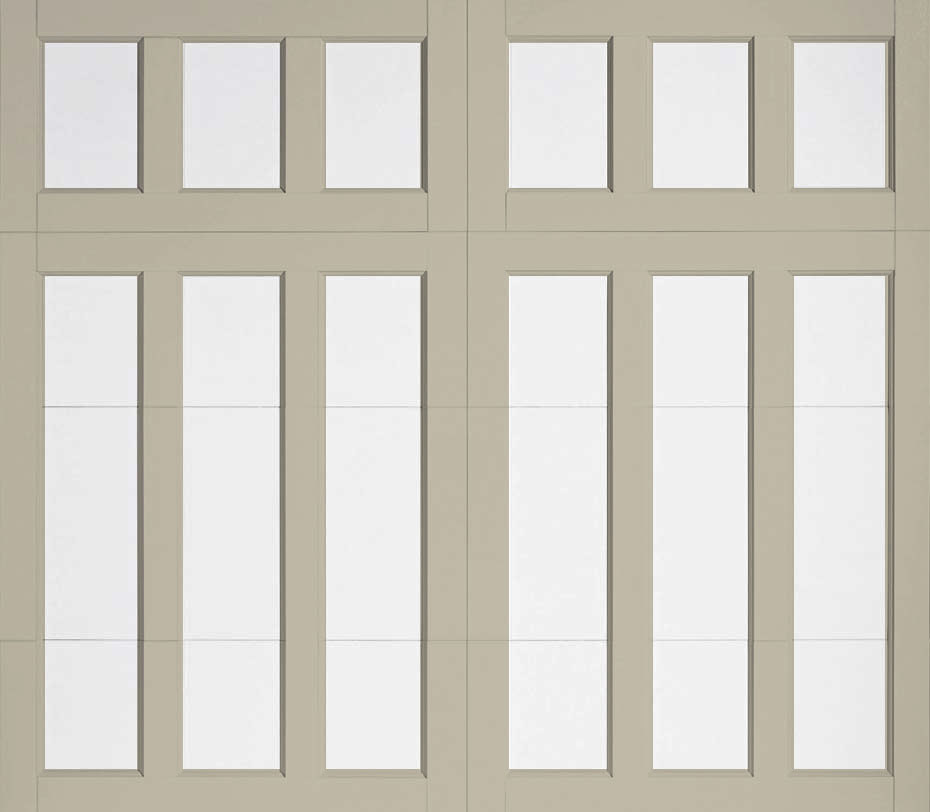

DESIGN 13
SERIES 2

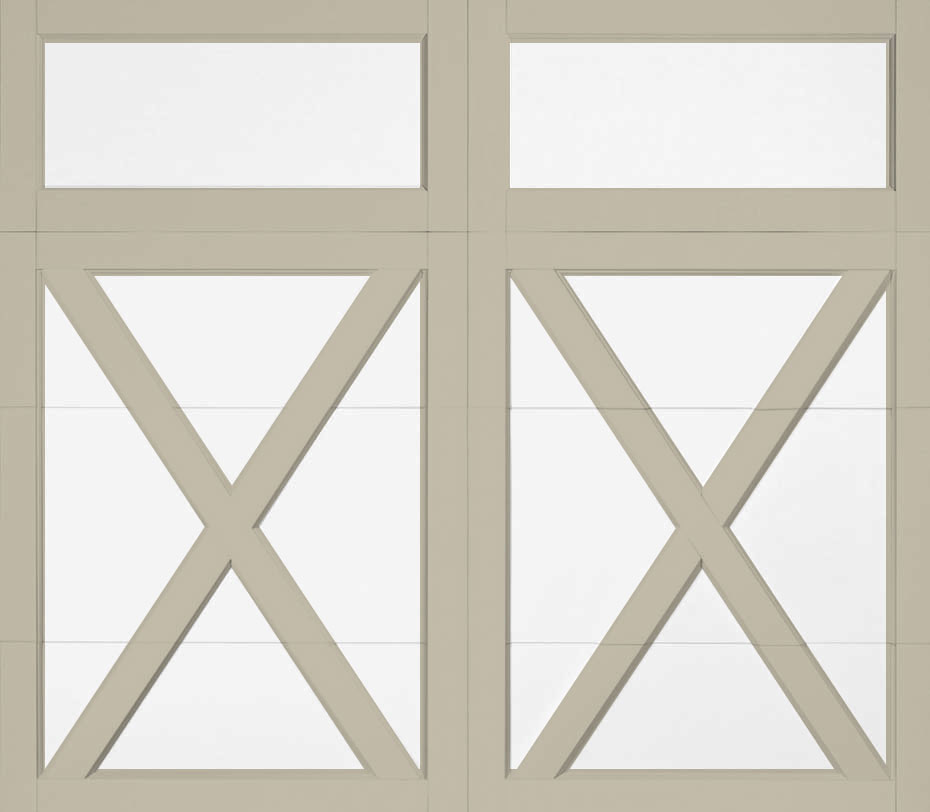

DESIGN 21

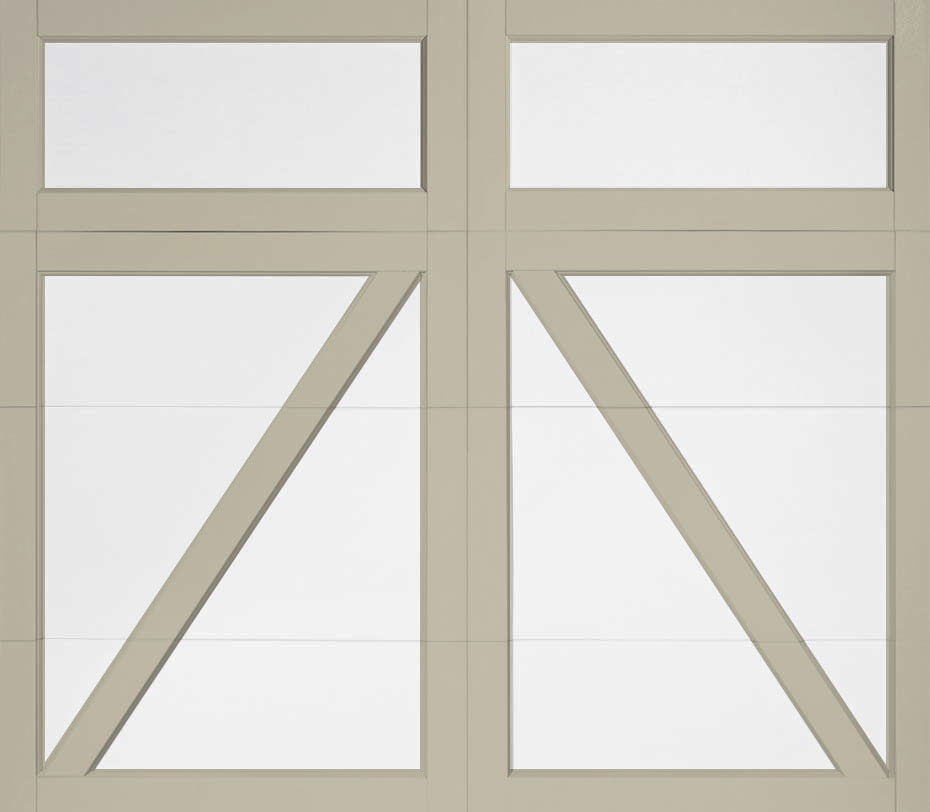

DESIGN 22

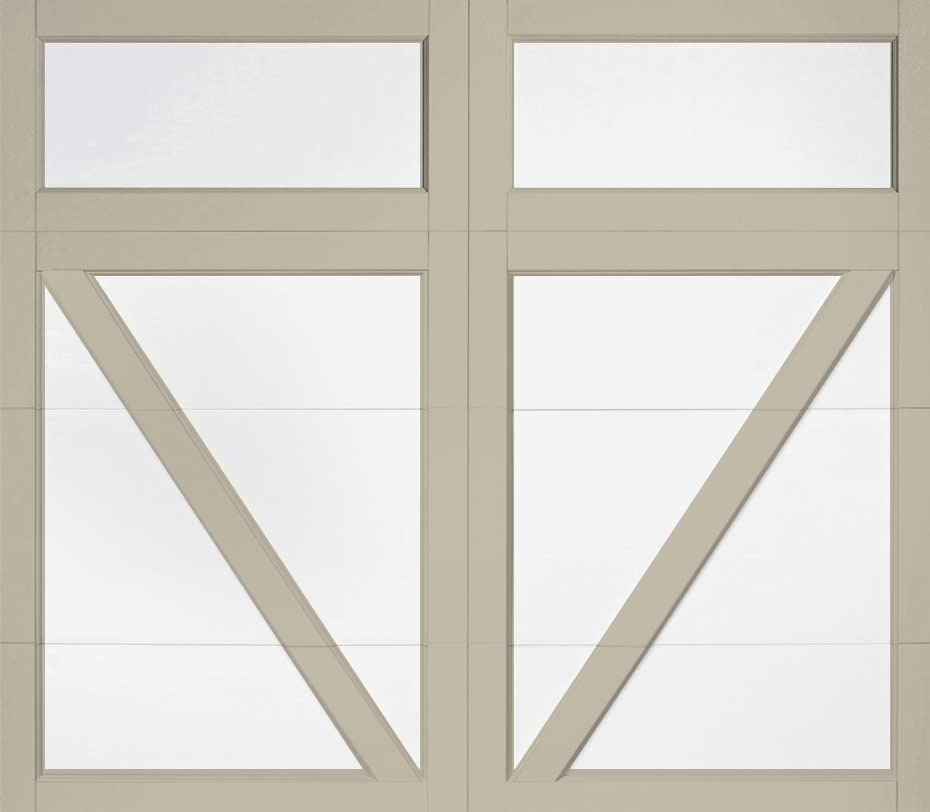

DESIGN 23

SERIES 3

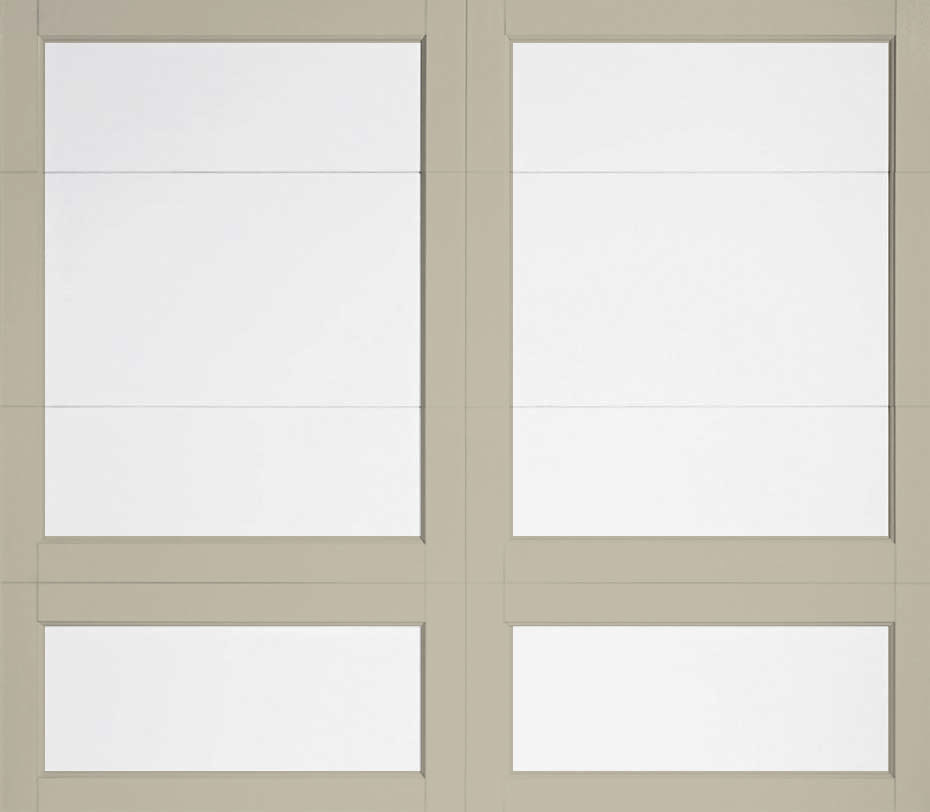

DESIGN 31

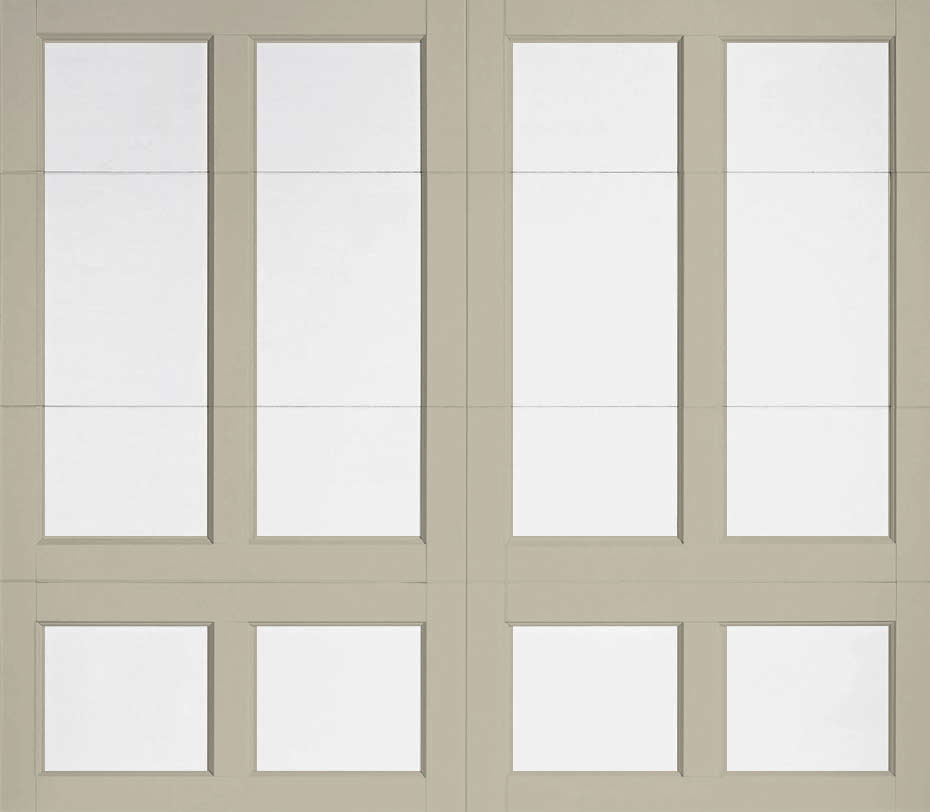

DESIGN 32

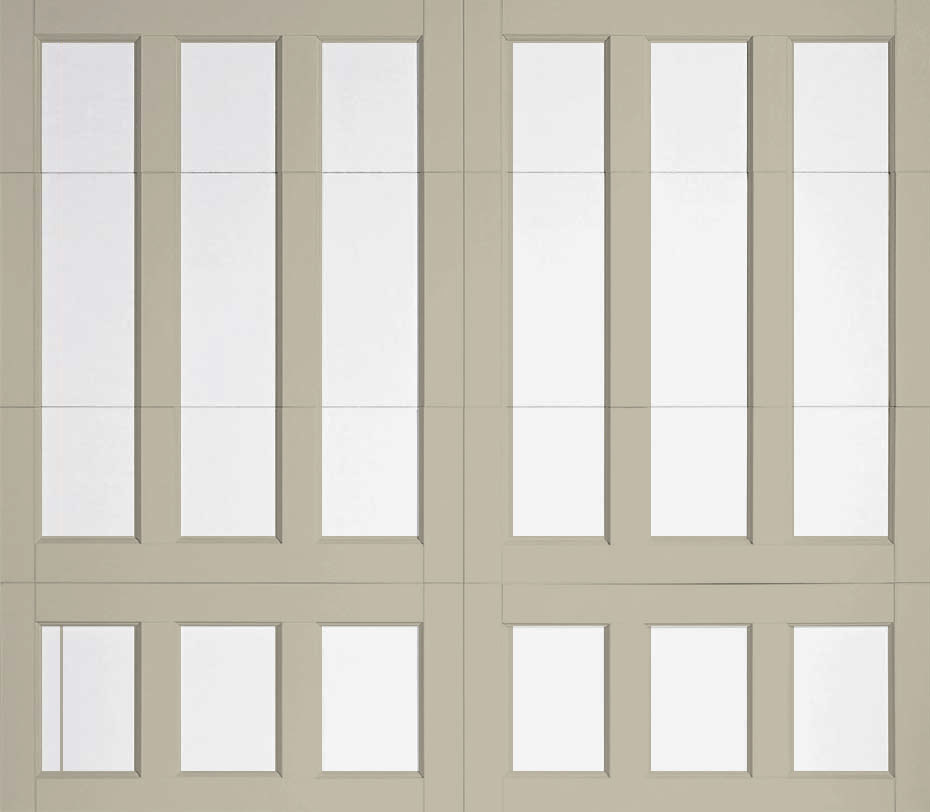

DESIGN 33
DESIGN 34

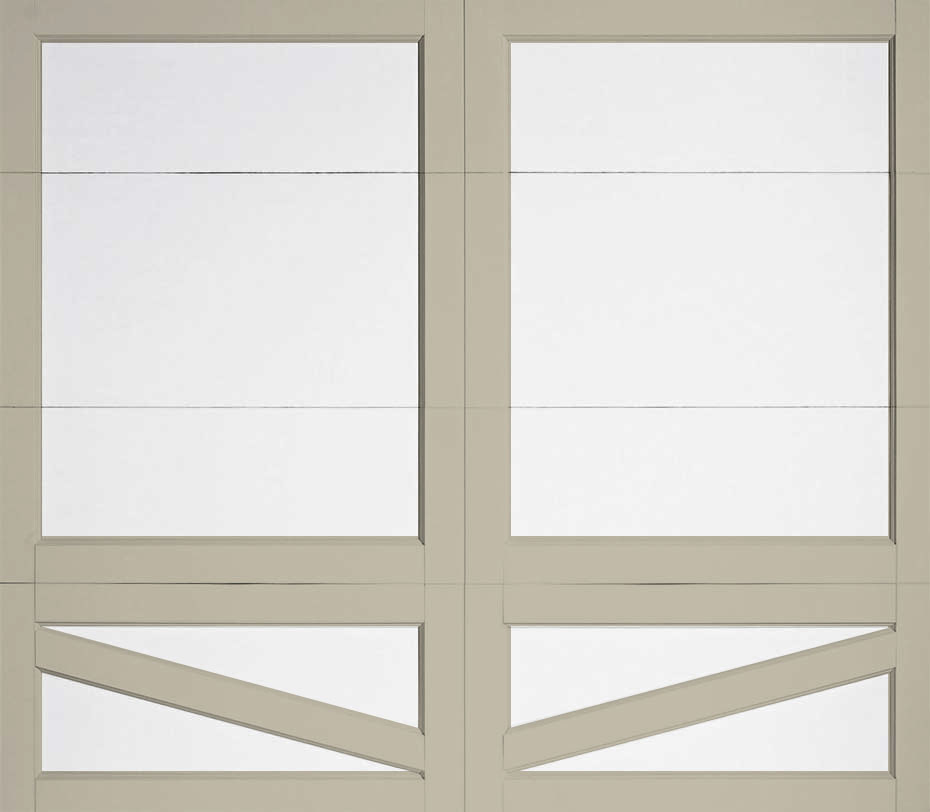

DESIGN 35

DESIGN 36
SERIES 4

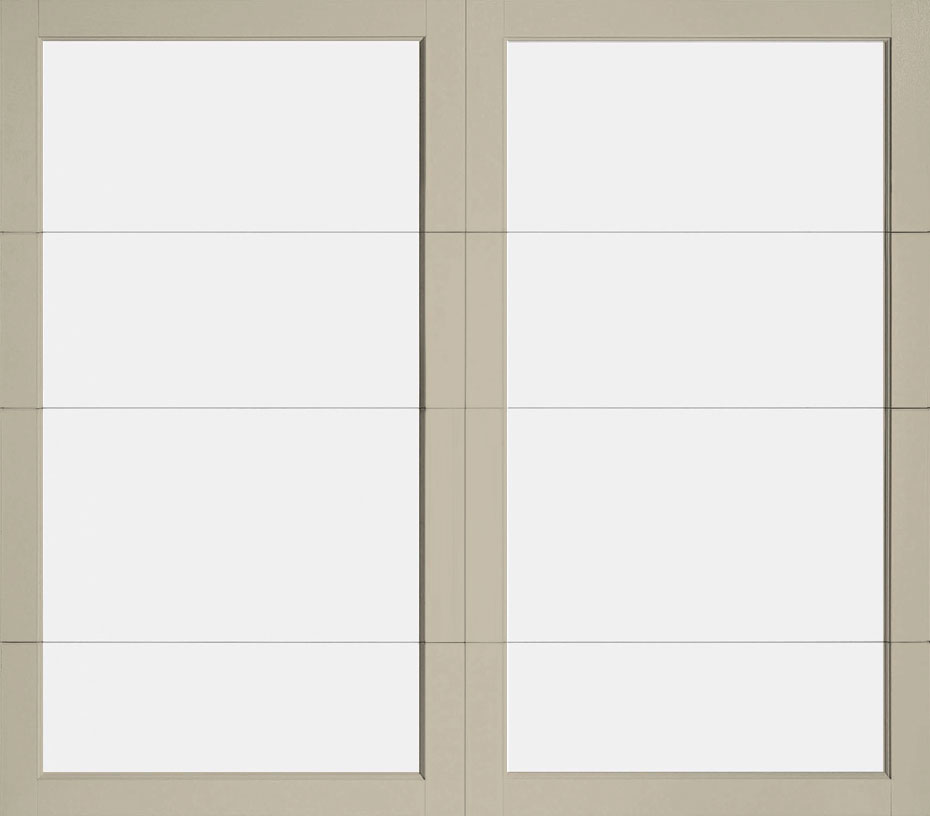

DESIGN 41

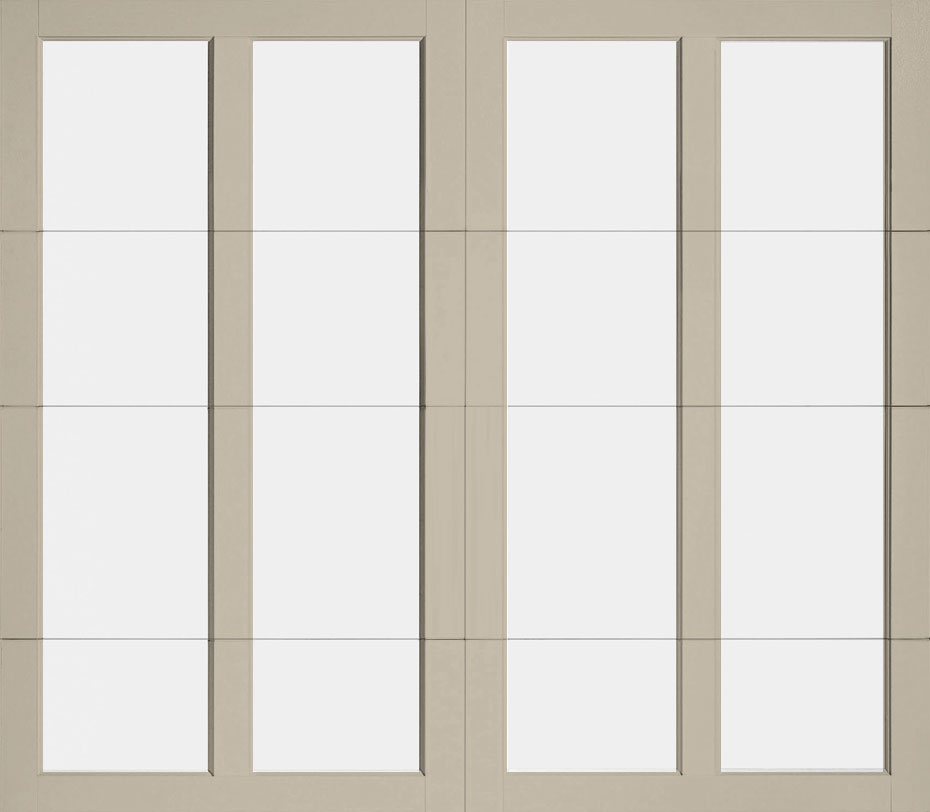

DESIGN 42

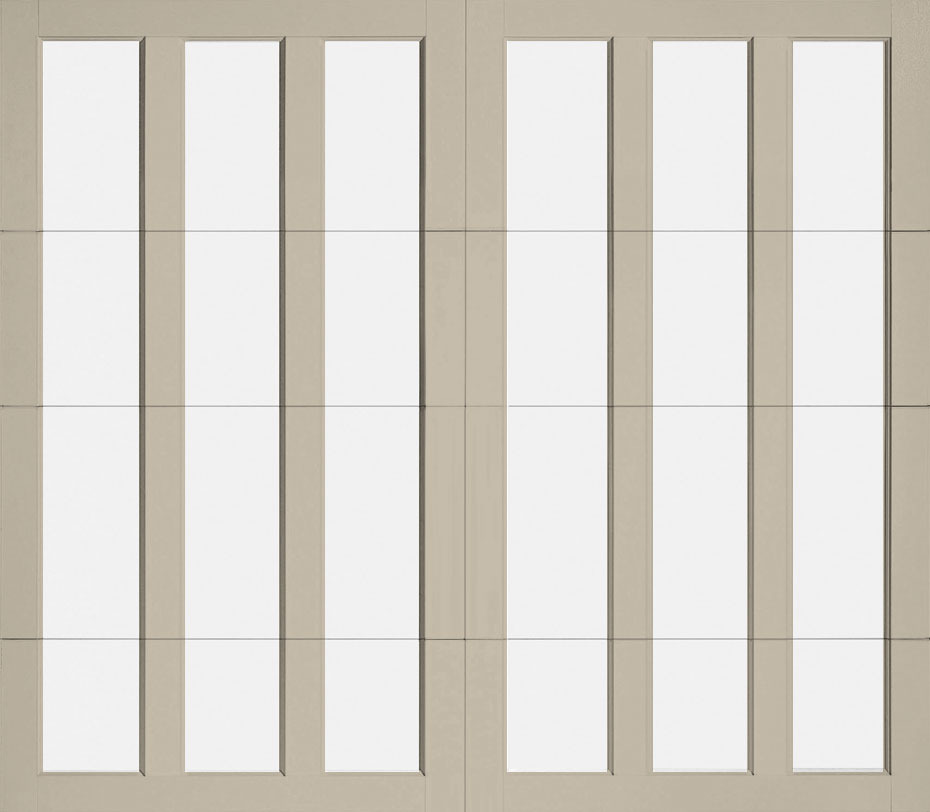

DESIGN 43

Windows/Top Sections


TOP11 Solid


TOP12 Solid


TOP13 Solid


ARCH1 (Solid)


REC11


REC13


REC14


ARCH1


SQ23


SQ24


ARCH3


ARCH4

Base Door/
Overlay Color Options


White

Almond

Desert Tan

Sandtone

Note: Door and overlay colors can be mixed and matched.

This door and overlays can be painted dark colors. Any paint that has an LRV (Light Reflective Value) of 38 or higher can be used to paint this door. Using a paint that has an LRV of less than 38 will void the door’s warranty. For more information call our Consumer Services Hotline at 1-800-557-0488.

Warranties

settlers_paintlifetime_warranty settlers_windowoverlay10yr_warranty settlers_overlaydelam5yr_warranty settlers_hardware5yr_warranty
